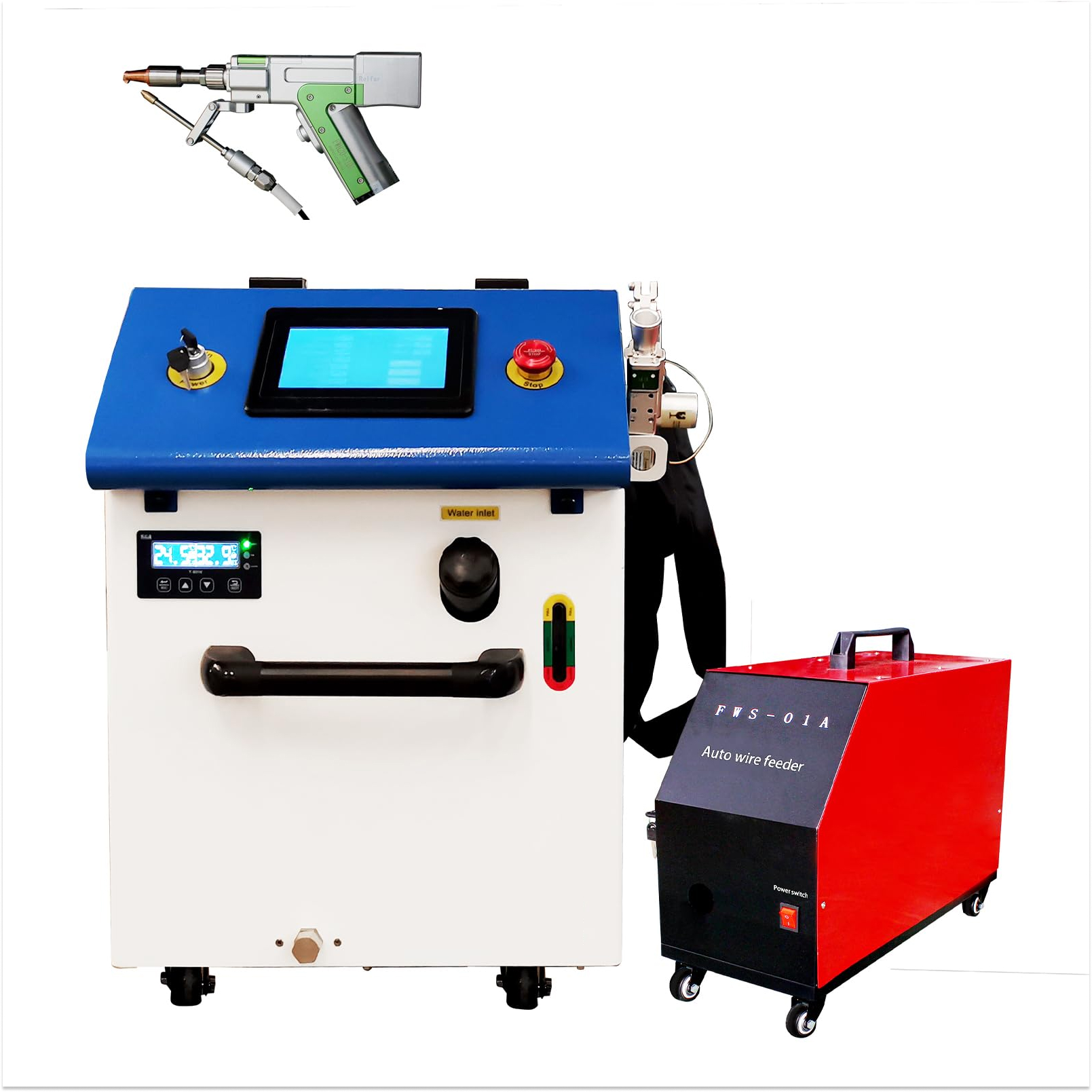

Our Laser welding machine is easy to learn, simple and fast to set up and provides consistent high-quality results across a wide range of materials and thicknesses.
Up to 4X faster than traditional TIG/MIG.
Easy to learn and operate with highest process consistency, novice welders are trained and welding in a matter of hours, reducing training and production costs.
High-quality welding of thick, thin, and reflective metals without distortion, deformation, undercut, or burn-through.
Welding of dissimilar metal parts of different thicknesses.
Dramatically low heat input and minimized heat-affected zone.
Minimal part setup and post-processing grinding or polishing.
Increased productivity with no need for machining or straightening deformed parts.
More safety operation, only need wearing safety glasses.
This new Laser welding machine is widely used to Metal Cabinet, Kitchen and Bathroom Tools, Medical instruments & Tools, Stairs, Elevators, Shelves, Ovens, Stainless steel doors and Aluminum Windows, Guardrail, Distribution box, Stainless steel household and other industries
Laser Welding Powers:-
| Equipment | Handheld Laser Welding Machine |
|---|---|
| Laser Power | 1000W/1500W/2000W |
| Brand | SJP |
| Laser Wave Length | 1070 NM |
| Fiber Length | Standard 10m, Max 15m |
| Working Method | Continuous/modulated |
| Welding Speed | 0~120mm/s |
| Cooling Method | Intelligent Water chiller |
| Working Environment | 15~35°C, Humidity <70% no condensation |
| Welding Thickness | .5-3mm |
| Welding Seam | ≤0.5mm |
| Working Power | 220v |
(Gold / Silver / Copper / Bronze / Platinum)

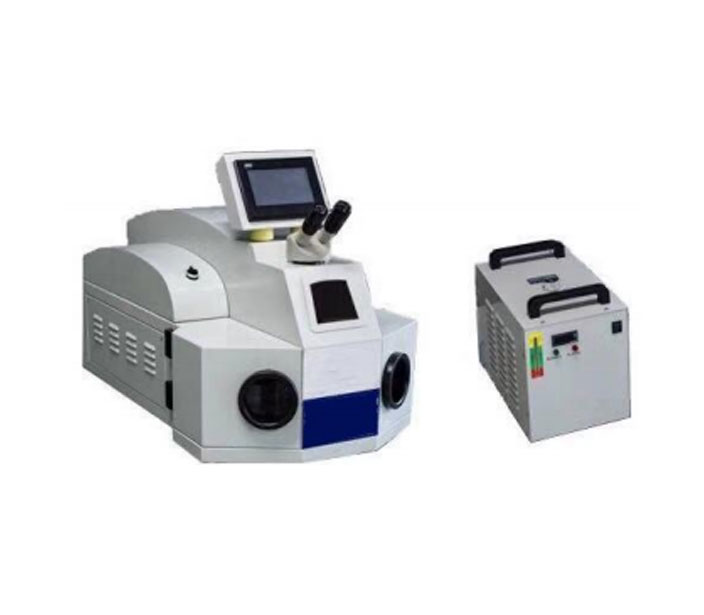

Laser Soldering Machine has been developed to solder small and intricate parts with high precision beam, stable light quality that guarantees strong and reliable soldering strength for the work pieces. Wide range of metals can be easily welded or soldered as per the customer needs, the engineer will prepare special application memory, which the customer will recall based on the sample type, size and material. When laser radiation heats the surface of work-piece, the surface heat diffuses to the interior through thermal conduction and melts the work piece by controlling the width, energy, peak power and repeating frequency of laser pulse to form specific molten pool. Because of this unique feature, it is widely used in processing of precious jewelry or welding of precision parts.
The energy, pulse width, frequency and light spot size can be adjusted in a large range to realize different welding effects. The parameters are adjusted by the lever in the seal cavity, which is simple and highly efficient.
Most advanced light shielding system eliminates the irritation to eyes by laser during working
Application
Spot welding, perforating, repairing, retipping and resizing of gold/silver/titanium/platinum jewelry and small accessories. Also widely used in aviation, aerospace, sports products, medical instrument, titanium alloy denture, instrument, electronics, machinery, automobile, etc
| Machine Required | Jewellery Soldering Machine |
|---|---|
| Power Type | Electric |
| Model Number | SJP 200 NDYAG |
| Power (Watt) | 200 |
| Automation Grade | Semi-Automatic |
| Condition | New |
| Laser Source | ND YAG |
| Cooling | Water Chiller Inbuilt |
| Viewing | Microscope (CCD Camera Optional) |
| Beam Diameter | 0.1mm to 3mm |
